Sectr Prototype

This prototype aims to flesh out ideas I've wanted to explore futher on code editing & related tooling.

The things to explore:

• 2D canvas for laying out code visualized in various types of ASTs
• WYSIWYG frontend ASTs
• Making AST editing as versatile as text editing.
• High-performance UI framework designed & built for AST editing.
• Generating a large amount of UI widget boxes with proper auto-layout & no perceptible rendering-lag or input lag for interactions (frametimes stable).
• Model-View-Controller interface between code managed by a 'backend' (both in memory and filesystem) and the UX composition (which has separate filesystem composition).

The project is so far in a "codebase boostrapping" phase.

The project's is organized into 2 modules sectr_host & sectr. The host module loads the main module & its memory. Hot-reloading it's dll when it detects a change.

The dependencies are:

• Odin Compiler (Slightly custom fork)
  • Added #region, #endregion directives support for editors
  • I added support for 'monlithic packages' or 'uniform-across-subdirectories packages'. It allows me to organize the main package with sub-directories.
• Odin repo's base, core, and vendor(raylib) libaries
• An ini parser
• backtrace
• Powershell (if you want to use my build scripts)

Major 'codebase modules':

• Engine : Main loop, logging, client interface for host, etc
  • Has the following definitions: startup, shutdown, reload, tick, clean_frame (which host hooks up to when managing the client dll)
• Env : Core Memory & State definition + orchestration
• Font Provider : Manages fonts.
  • When loading fonts, the provider currently uses raylib to generate bitmap glyth sheets for a range of font sizes at once.
  • Goal is to eventually render using SDF shaders.
• Grime : Name speaks for itself, stuff not directly related to the target features to iterate upon for the prototype.
  • Defining dependency aliases or procedure overload tables, rolling own allocator, data structures, etc.
• Input : All human input related features
  • Base input features (polling & related) are platform abstracted from raylib
  • Input Events
• Parser : AST generation, editing, and serialization. A 1/3 of this prototype will most likely be this alone.
• Project : Encpasulation of user config/state separate from persistent app config/state as a 'project'
  • Manages the codebase (program model database)
  • Manages workspaces : View compositions of the codebase
• UI : Core graphic user interface framework, AST visualzation & editing, backend visualization
  • Will most likely be the bulk of this prototype.
  • PIMGUI (Persistent Immediate Mode User Interface)
  • Auto-layout
  • Supports heavy procedural generation of box widgets

Due to the nature of the prototype there are 'sub-groups' such as the codebase being its own ordeal as well as the workspace. They'll be elaborated in their own documentation

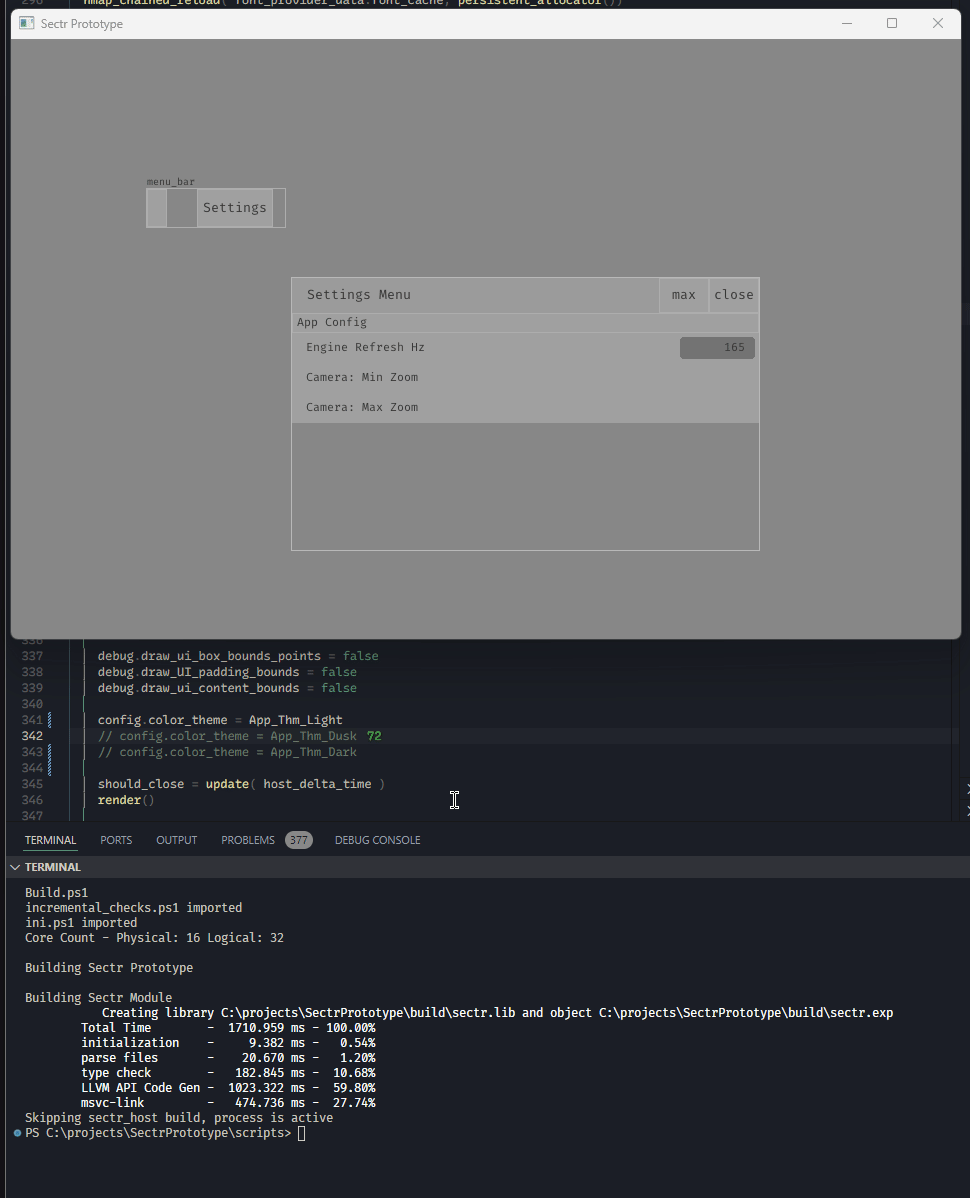

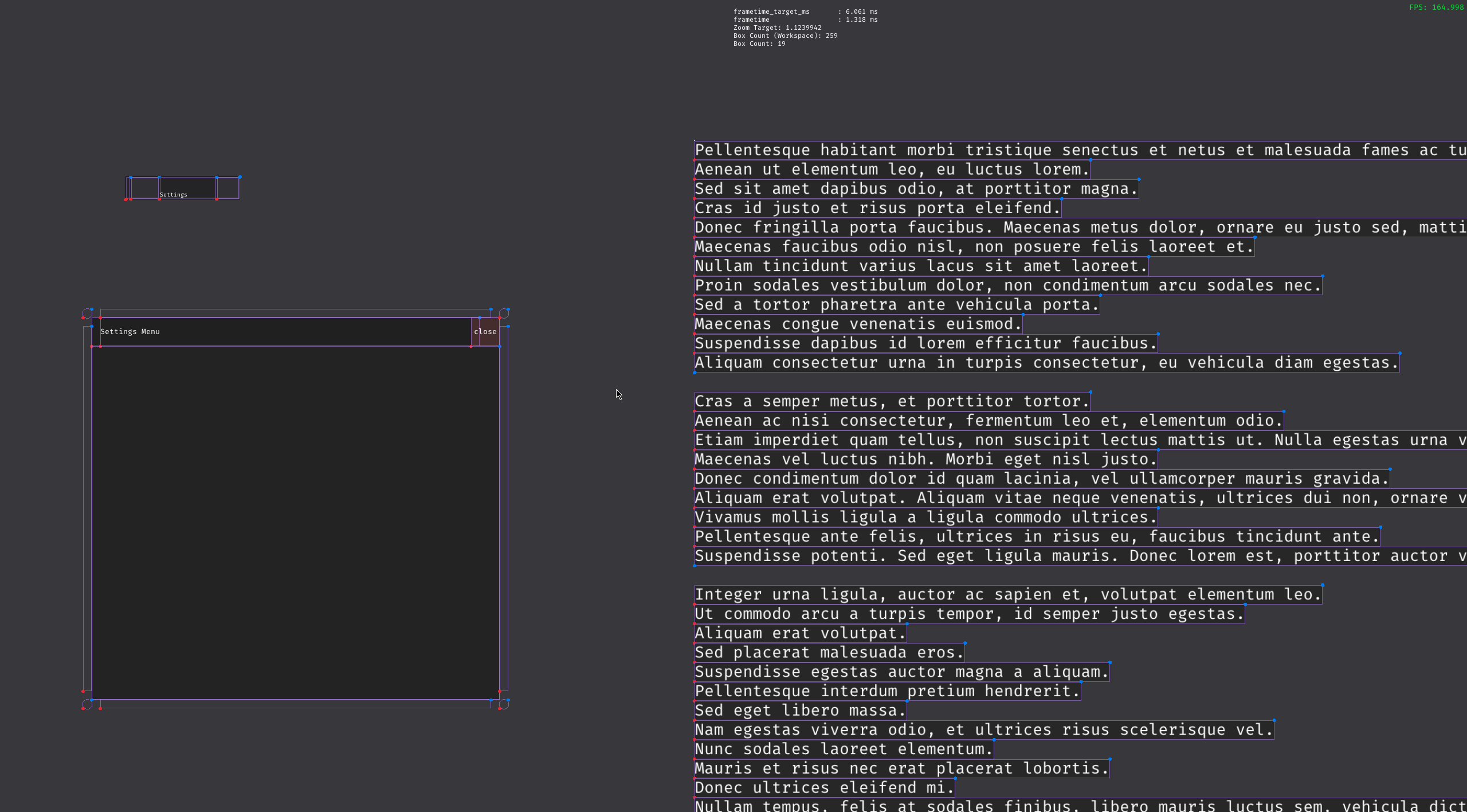

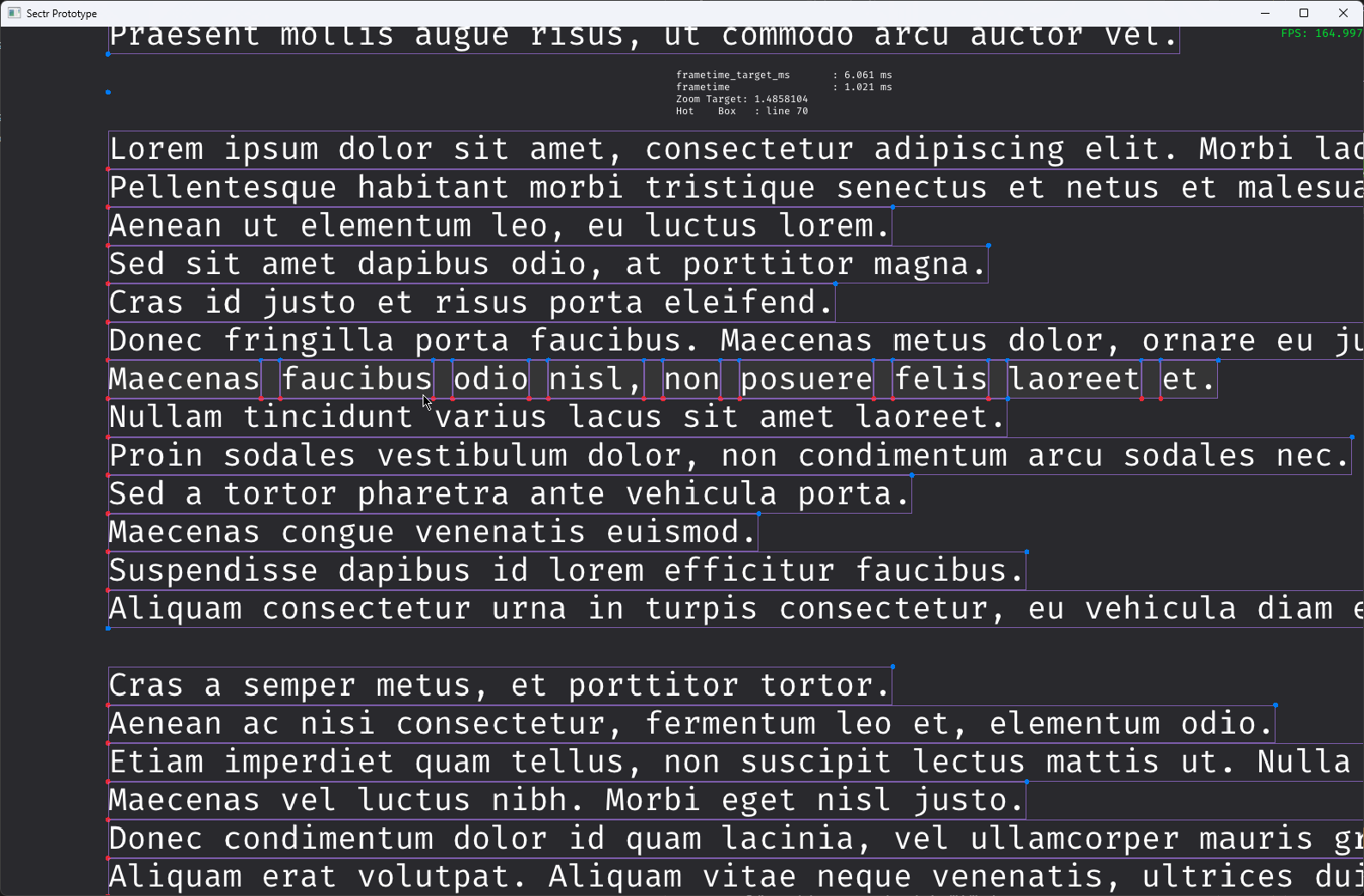

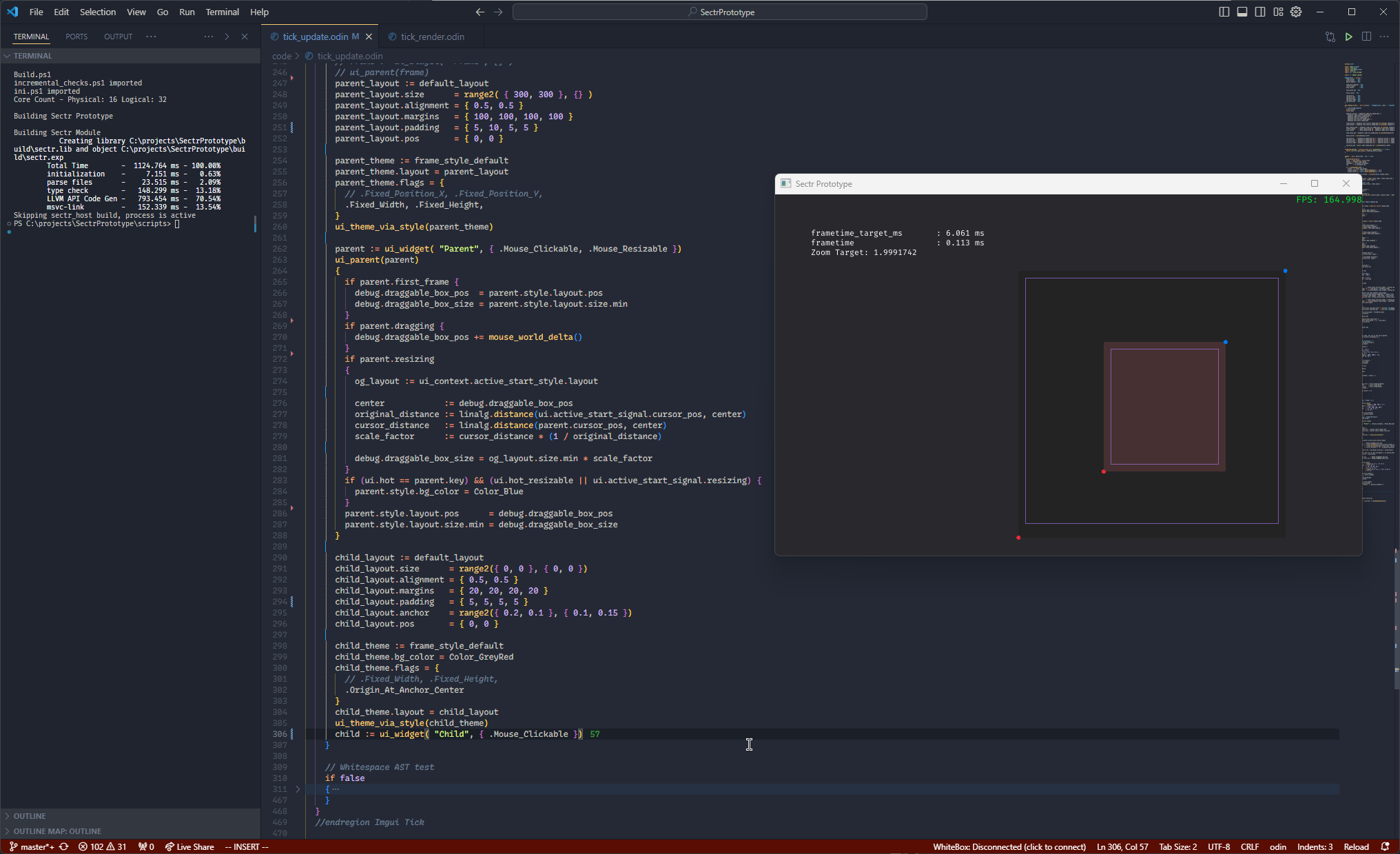

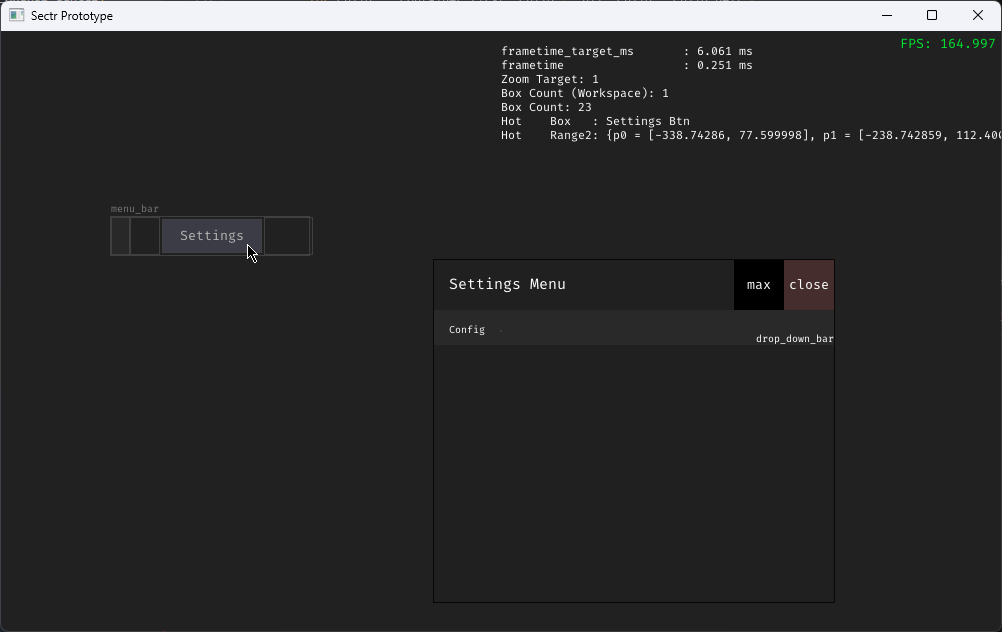

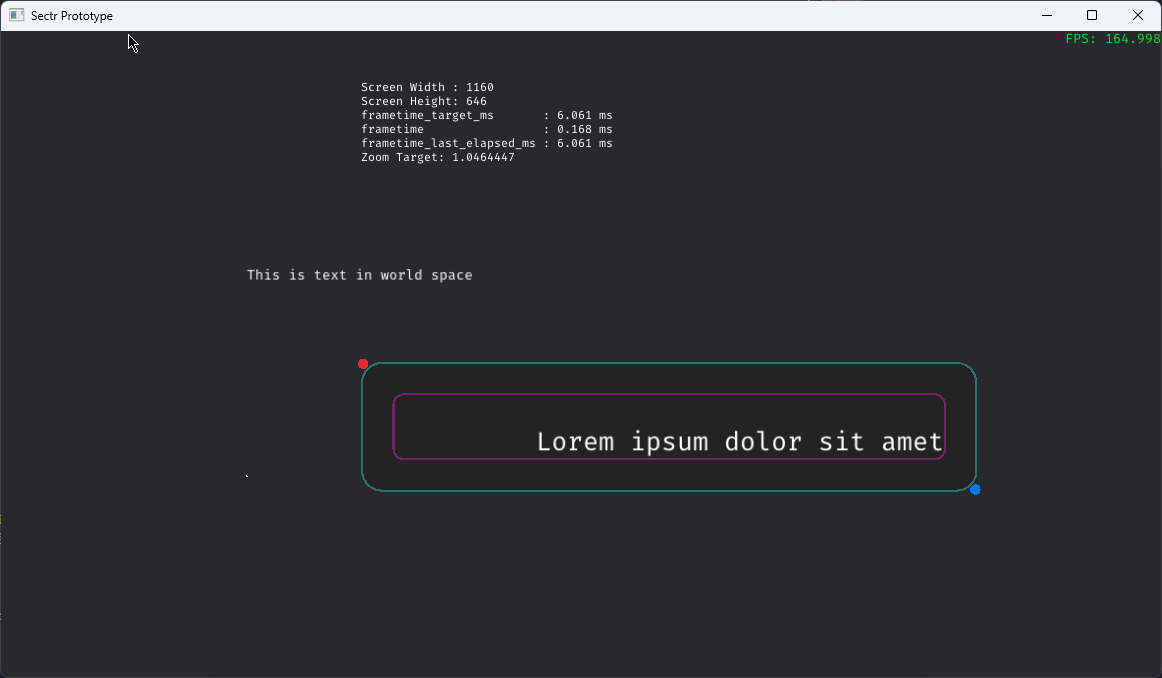

Gallery
